Meshoppen Fire Dept. | MF004 | Municipal Facility:

Looking for “Pole Barn Builders Near You”? Pioneer Building (PBC) is your go-to choice for high-quality, custom pole barns. Whether you need a spacious garage, an agricultural building, or a unique Municipal Facility, we’re here to bring your vision to life. Recently, we completed the Meshoppen Fire Dept project in Pennsylvania, a post-frame structure with a metal exterior. Contact us to get started and bring your project to life!

Diverse Building Options:

At Pioneer Building, we specialize in custom pole barns built to meet your unique needs. Our Agricultural Pole Barns provide space for machinery, livestock, and crop storage. Residential Pole Structures are perfect for storing toys, equipment, or even creating a second home, with full customization options to match your style. Our Commercial Pole Buildings offer efficient solutions for retail spaces, warehouses, or workshops, designed specifically for your business.

We also offer Event Pole Structures for large gatherings, trade shows, or community events, ensuring both functionality and visual appeal. Recreational Pole Buildings are great for hobbies, workshops, or leisure spaces. For equine lovers, our Equestrian Pole Barns are designed with tack rooms and horse stalls. Lastly, our Barndominiums combine rustic charm with modern living, offering customizable exteriors and layouts to fit your lifestyle. At PBC, we provide high-quality, tailored pole buildings to bring your vision to life.

Building Specifications:

• Building Type: Municipal Facility
• Job Type: Commercial

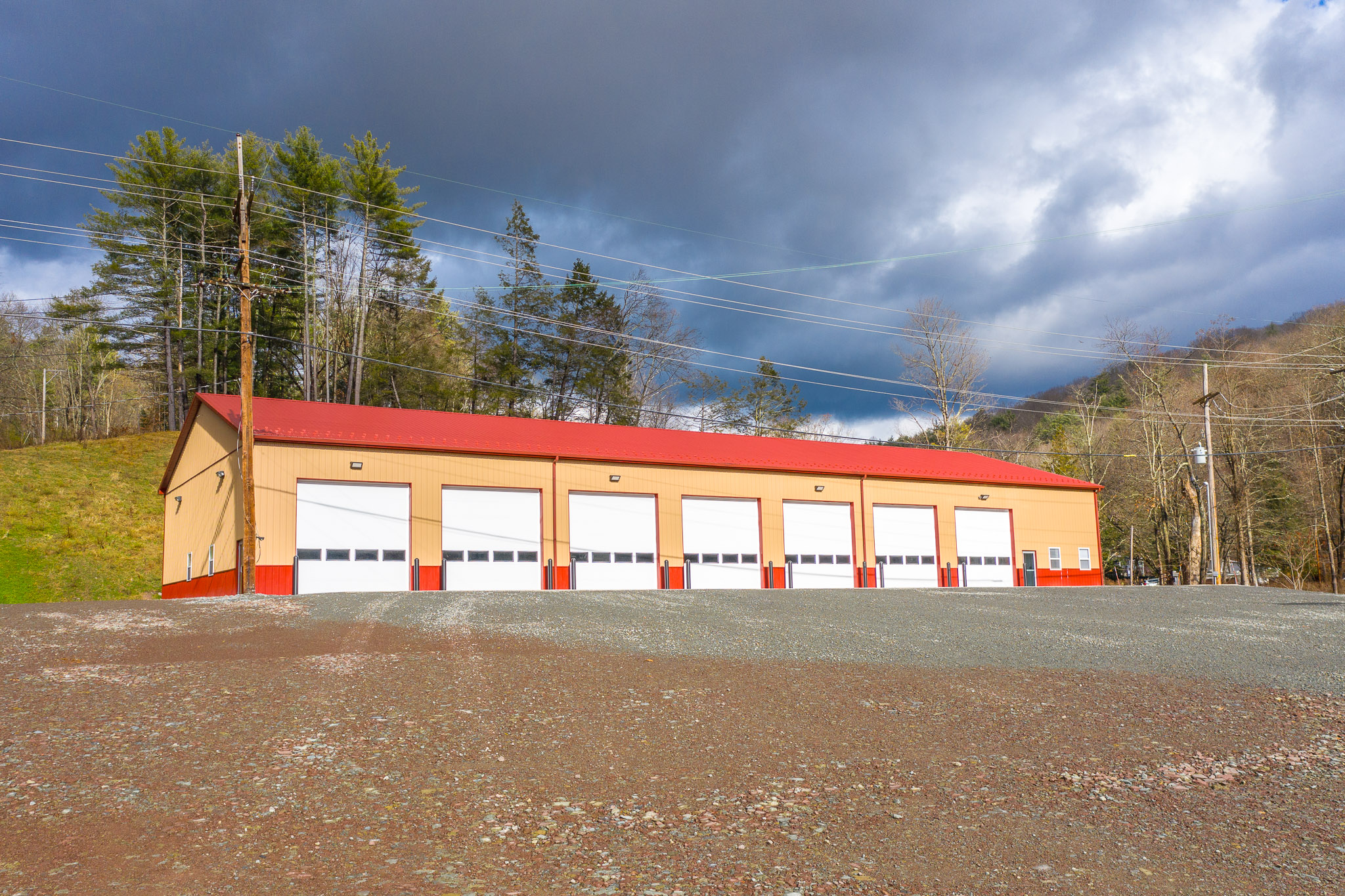

• Dimensions: 60’W x 150’L x 18’6″H

Building Colors:

• Siding Color: Tan
• Two-Tone Color: Red
• Roof Color: Red
• Trim Color: Red
• Garage Door: White
• Man-Door Color: White
• Window Color: White
• Soffit Color: Custom
• Gutter Color: Red
• Downspout Color: Red

Construction Details:

• 3-ply 2 x 6 glu-laminated, poles 8′ on center
• Siding: 28-Gauge Frontier Panel 50-Year Warranty

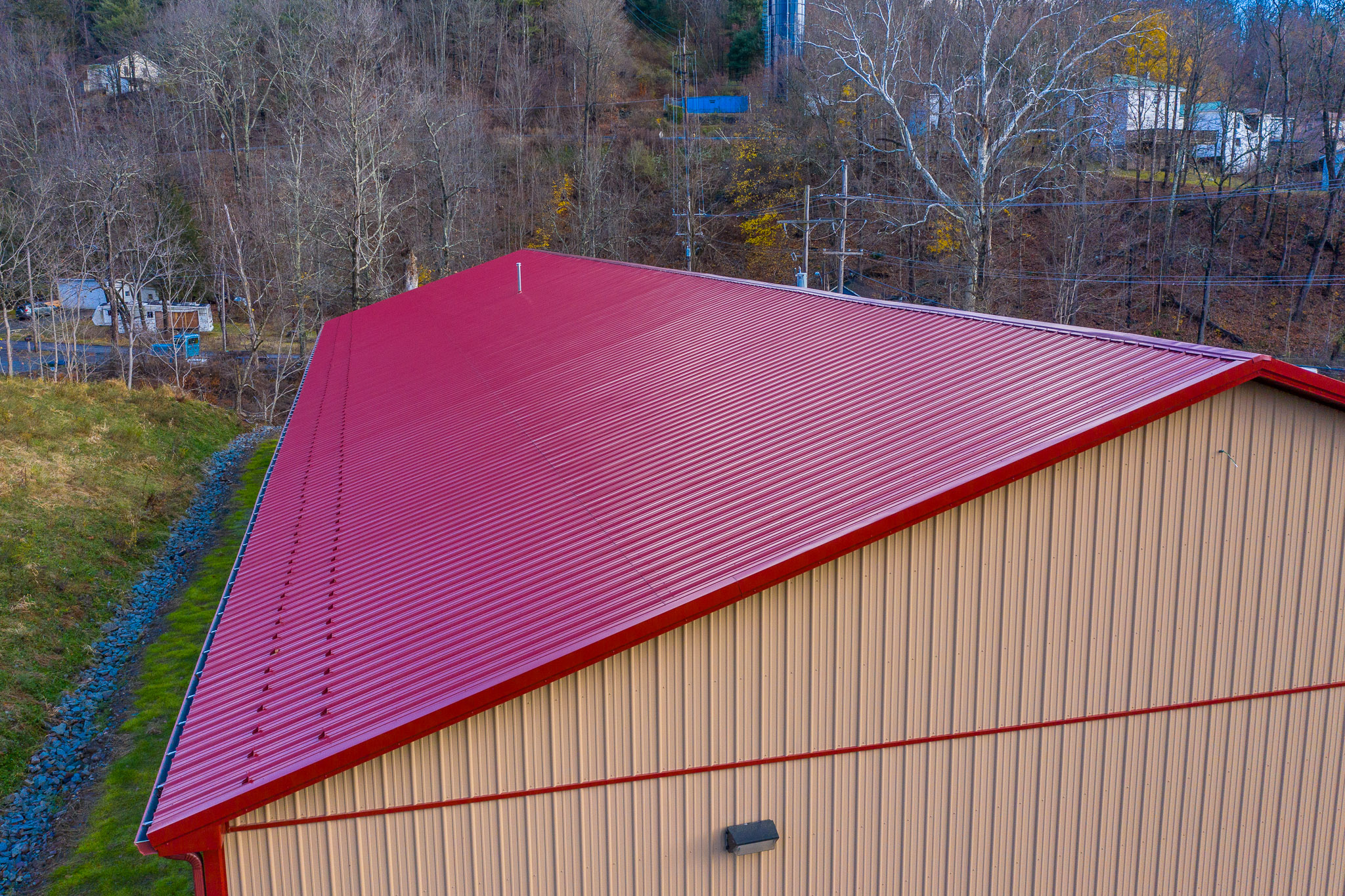

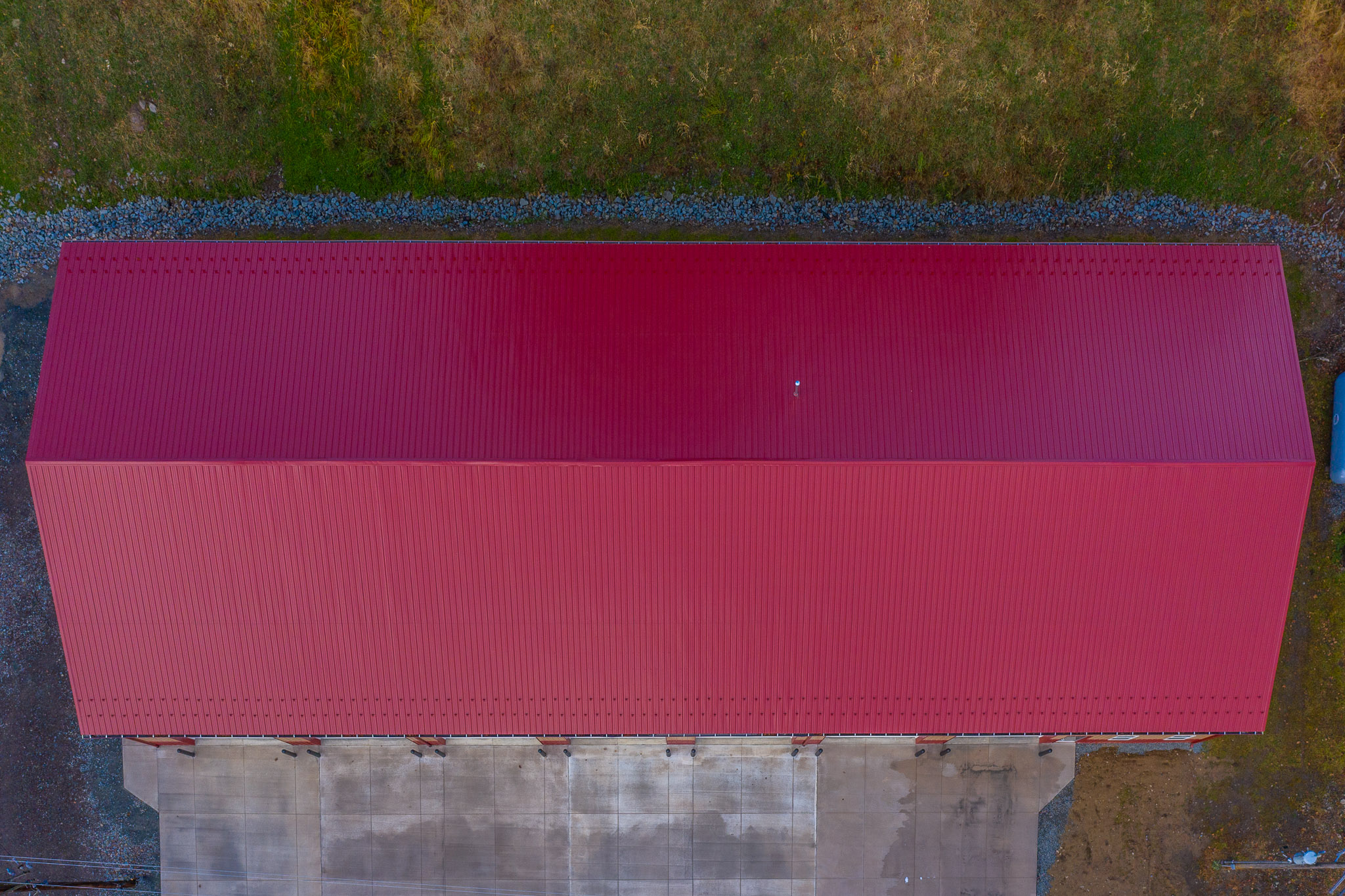

• Roofing: 27-Gauge Frontier Panel 50-Year Warranty
• 60′ Standard Trusses, 4′ on center, 4/12 pitch, snow load by code and design
• Pitch: 4/12

Openings:

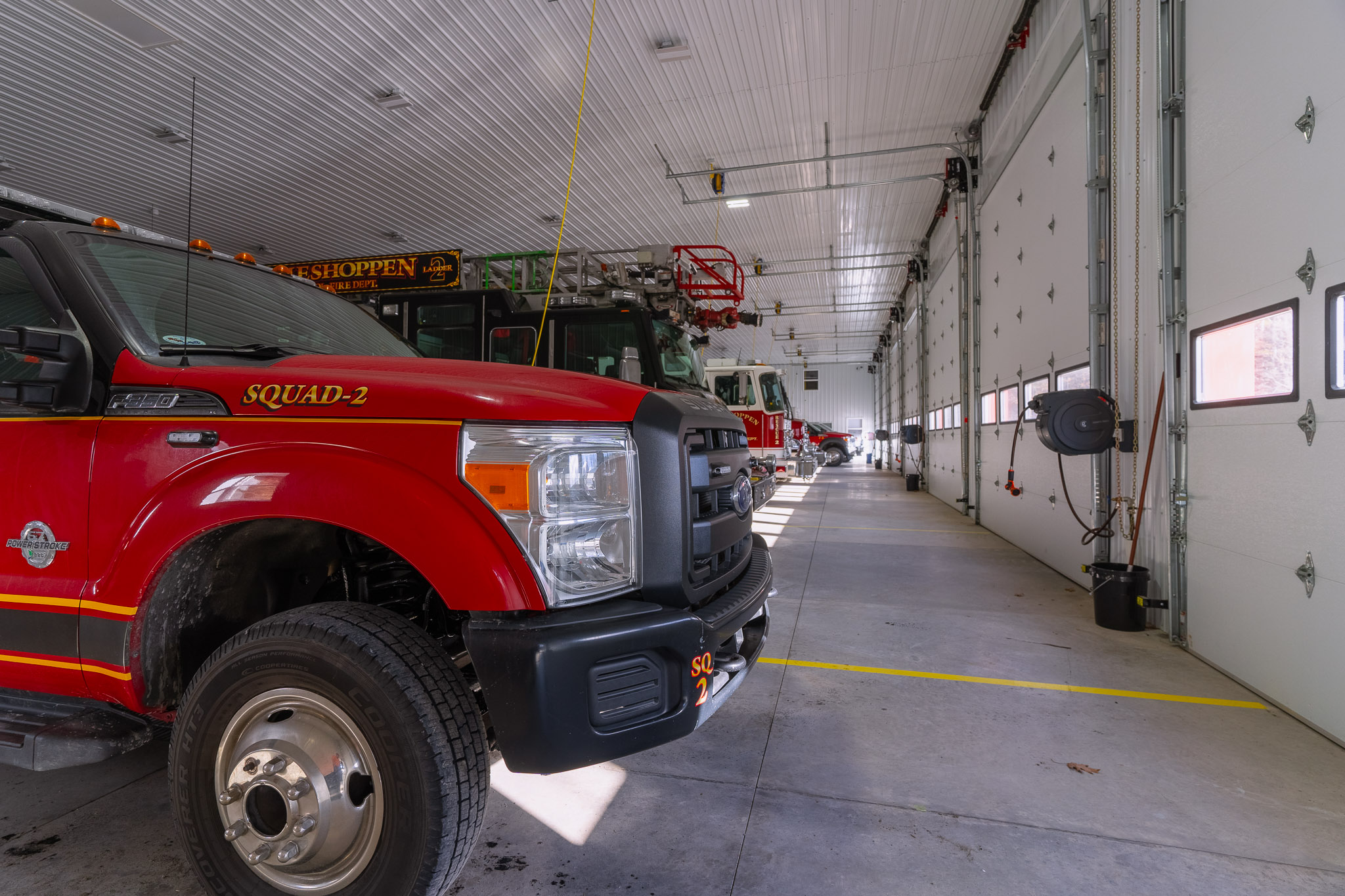

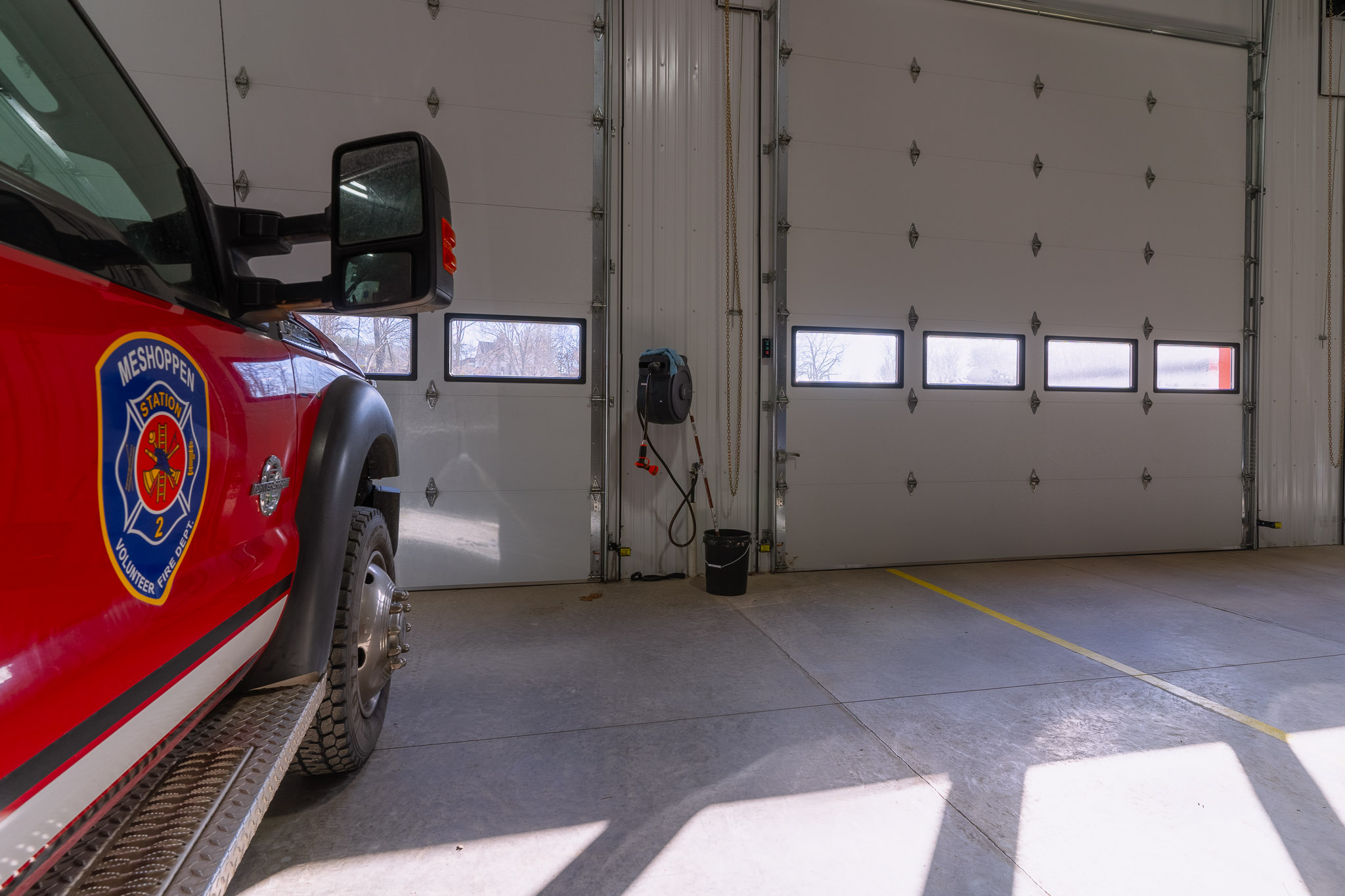

• ( 7 ) 14’W x 14’H Commercial Micro Grooved Insulated,
  • Hi-Lift
  • Placement: eave
  • Lights: 4
  • Color: White
• ( 7 ) Opener: 1/2 hp commercial duty jackshaft side mount opener with interior wall button,
  • Safety photo cells
  • ( 1 ) remote transmitter w/8′ chain
• ( 18 ) Window 3W 4H Single Hung Insulated White with Screen/No Grids
• ( 4 ) Ceiling Liner access door, insulated, White

Overhang Details:

• Eaves 1: OH 1′
• Eaves 2: OH 1′
• Gables 1: OH 1′
• Gables 2: OH 1′
• Soffit Material: Vinyl
• Gutter Length: 304 Feet
• Downspout: 6K

Insulation:

• Wall: Double Bubble Vapor Barrier
• Wall: R-21 w/Liner
• Roof: Double Bubble Vapor Barrier
• Roof: R-38 w/Ceiling Liner

Miscellaneous:

• Two-Tone Siding, Location:
  • ( 2 ) Eaves
  • ( 2 ) Gables
  • Lower Color: Red

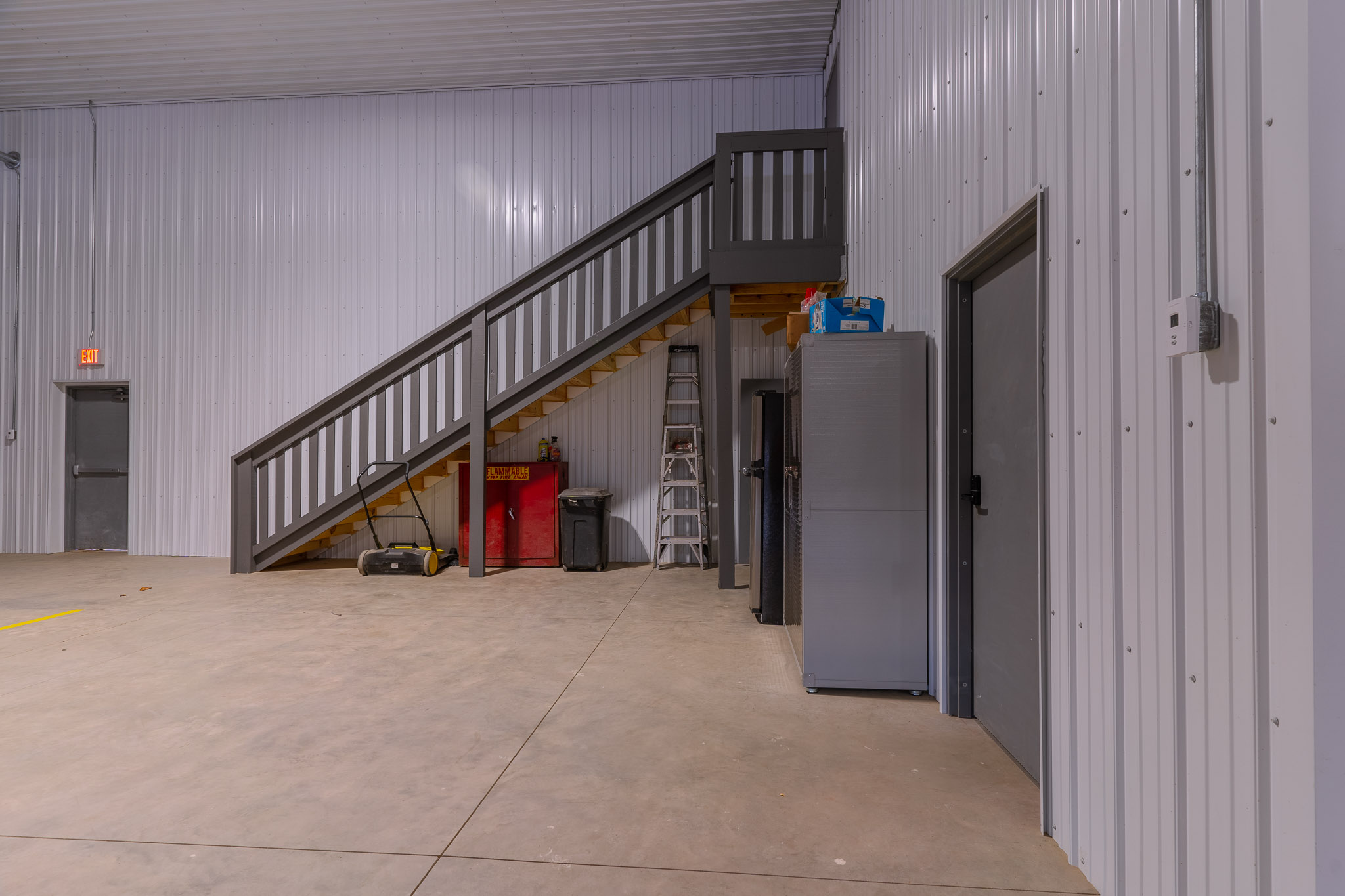

• ( 1 ) Stairs 8′ to 10′ high
• 150 ft, Universal Ridge Vent
• Trash Removal
• ( 1 ) 90′ L x 18′ H Partitional wall with white liner panel on one side
• 2 x 8 Skirtboard .60 Treated with barrier tape
• Engineered Sealed Blueprints
• ( 7 ) 10′ Long trough drains at the center of each overhead door. Run perpendicular to the doors. Egress pipe to run 5′ past the front sidewall. Customer to install T into the customer’s main run to the customer’s oil water separator tank.
• ( 7 ) bays to have a 4-way slope to their individual trough drains. All excavation, backfilling, and tamping to the T-pipe by Pioneer.
• ( 9 ) 3068 HM exterior and partition wall commercial entry doors with flush panel primer finish.
  • ( 2 ) open out the hinge left with panic and closers
  • ( 1 ) open out hinged right with panic and closer.
  • ( 1 ) open out hinged left with panic and closer on the second floor
  • ( 3 ) open in a hinged right, no panic with a closer
  • ( 2 ) open out hinged left with panic and closers

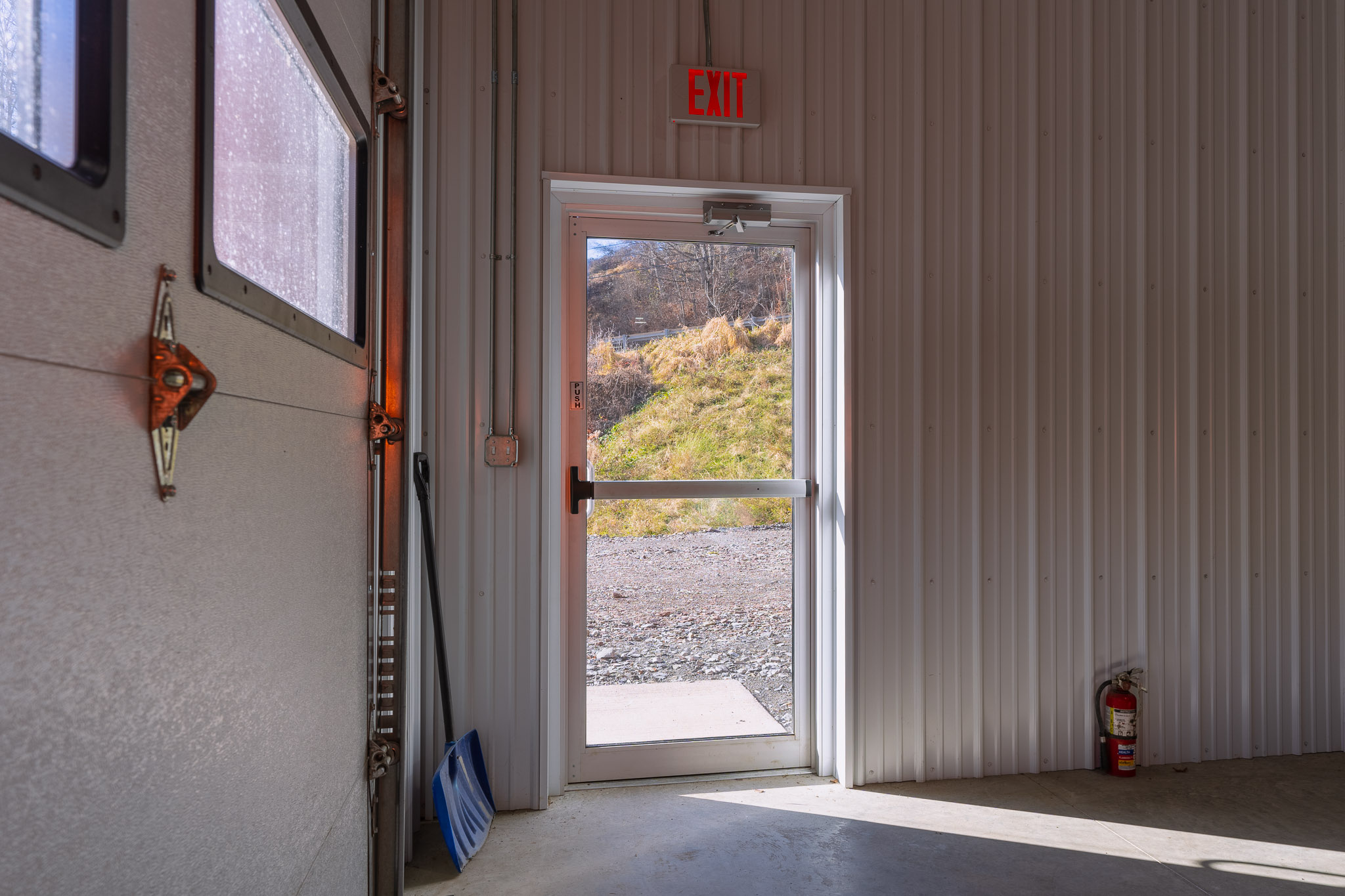

• ( 2 ) 3068 anodized aluminum CVR panic hardware, 1″ clear tempered full glass, and closer. At the front entry area ( hinged right open out ), and the left endwall front corner of the garage area. (Hinged left open out)
• 6” Concrete floor, expansion joints, fiber mesh, 4,000 PSI, top sealer

Meshoppen Fire Dept. | MF004
